Insulation Tapes
Tape made with Solvent based Gum which does not mix with water and dry in it. It joints firmly and permanently in water.

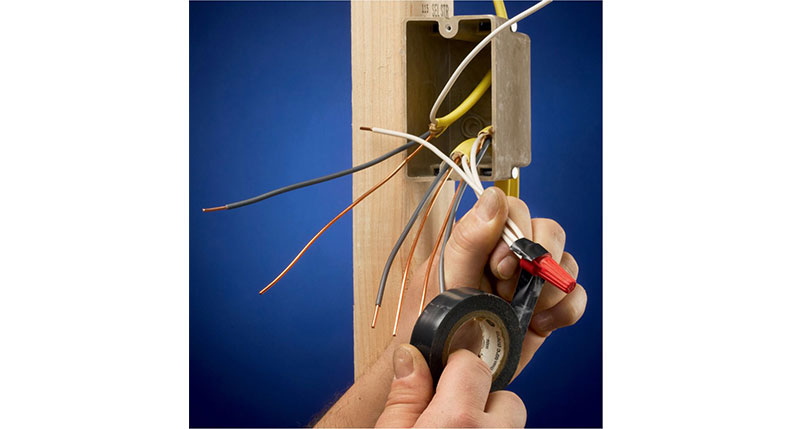

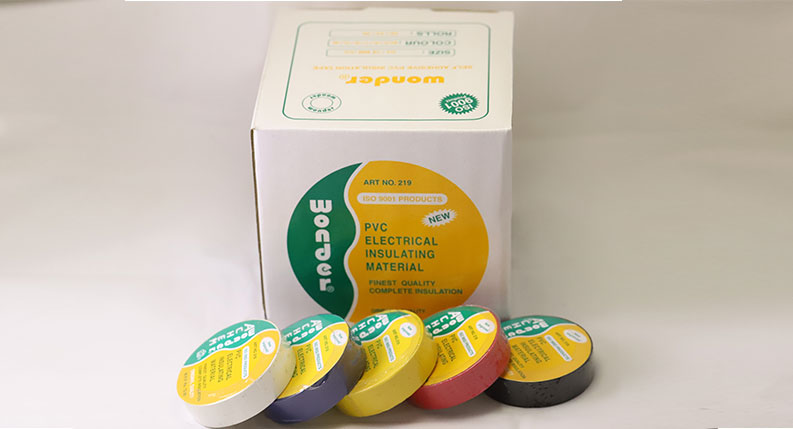

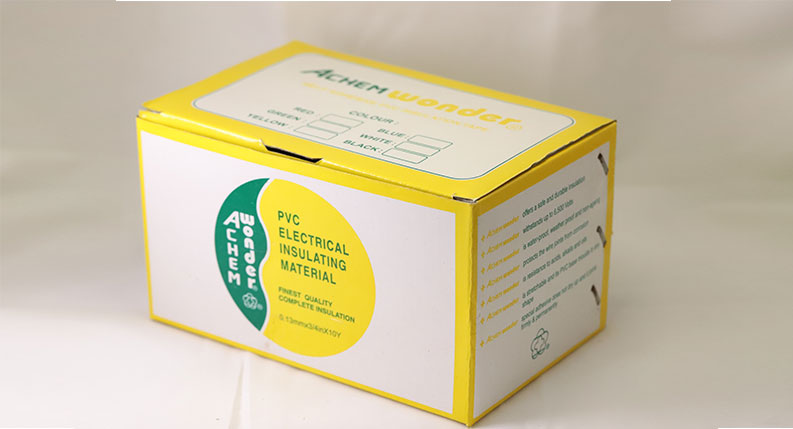

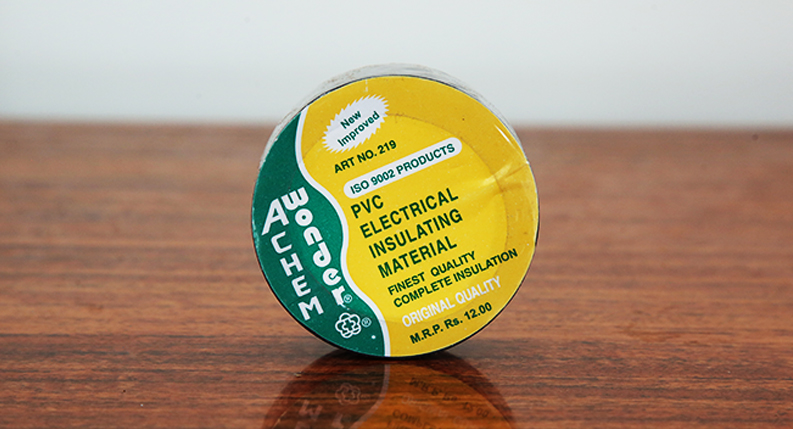

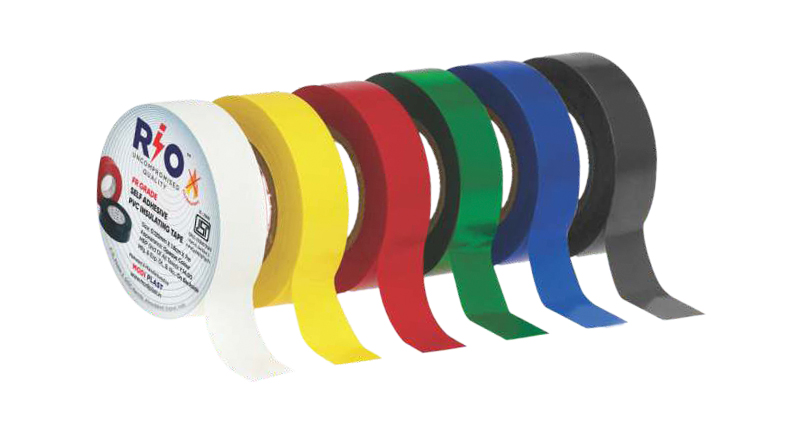

ACHEM Wonder , ELITE & RIO Brands For PVC Insulation Tape is mainly used in Electrical, Electronics and Automotive Industries for Insulation, Wire harness, Cable Jointing and Protection of Electronics parts and cables. Our Tapes are available in different colors and different grades & it is high voltage and high temperature resistance.

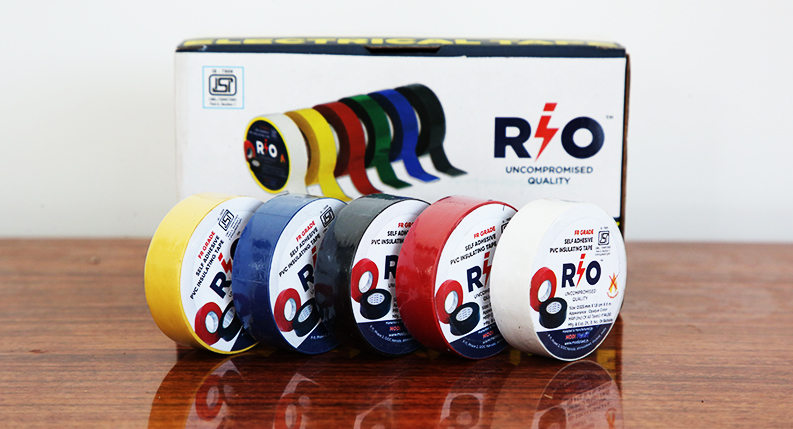

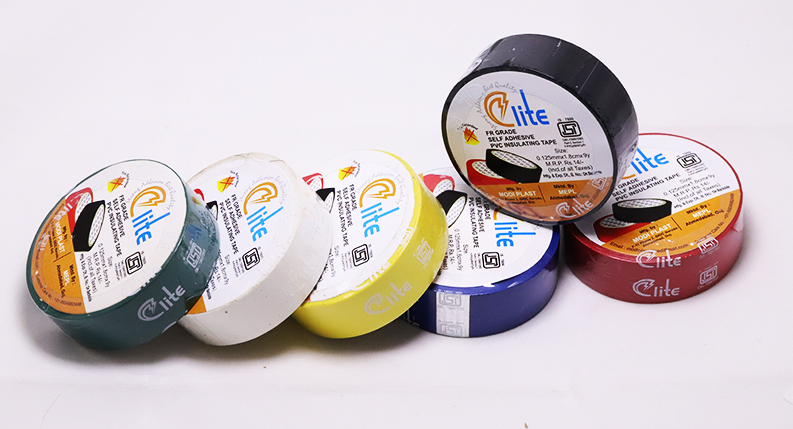

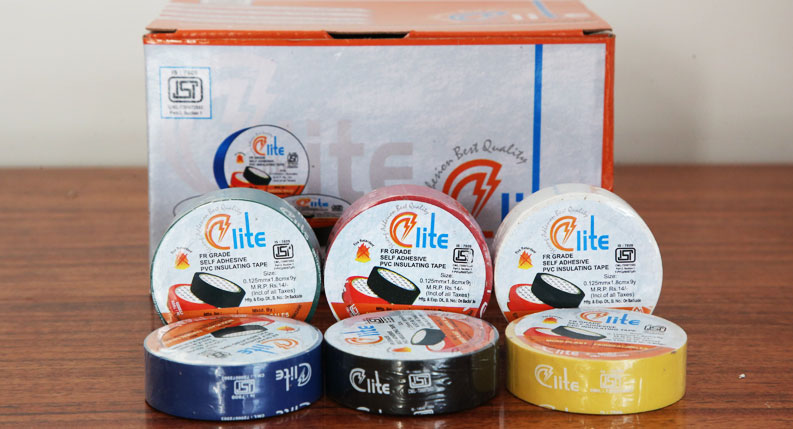

We have also introduced ELITE & RIO Brand High performance Electrical PVC Insulation Tape which is best for Submersible Pump Industry. It is ISI Certified and ROHS Complaint.
We have latest technology from Taiwan with imported converting machine and automatic packing machine for superior finishing of tapes.
Many more grades of tapes and many sizes can be provided as per special requirements
Specifications
| Particulars | Specifications |
|---|---|
| ISI No. | 7809 |
| FR. Grade | Fire Retardant |
| Backing | SOFT P.V.C. |
| Thickness | 0.13/0.50 MM/ Miles PSTC -33 |
| Tensile Strength | 2.5/14 PSTC -31 Cm / Kg /lb / In |
| Elongation at Break | 150% PSTC -31 |
| Adhesive Power | 18 Kg./CM/ Oz / In PSTC -1 |
| Dielectric Breakdown | 6,500 volts ASTM D – 1000 |
| Dielectric Strength | 1,250 volts ASTM D -1000 |
Features :

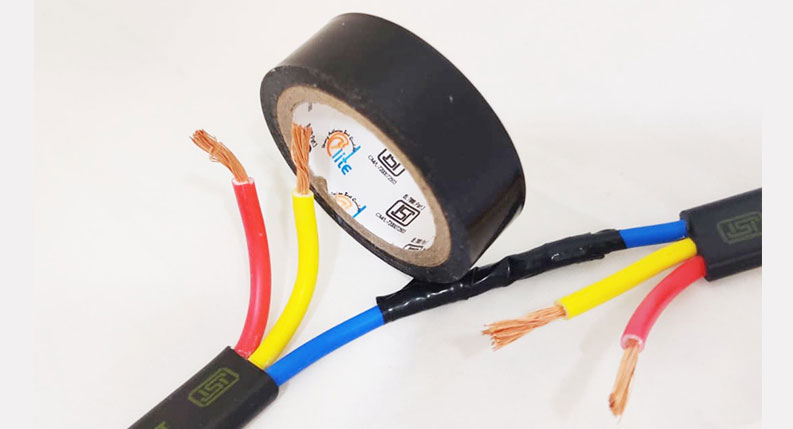

These Insulation Tape Specially Made for Submersible Pump & Electric Wires.
- Our Brands - Elite / Achem Wonder / RIO.
- Offers a safe and durable insulation.
- With stands up to 6500 volts.
- Water- proof, Weather Proof and Non-Ageing.
- Protects the wire joints from corrosion.
- Resistance to Acids, Alkalis and Oils.
- Fire Resistance Grade.
- Stretchable and its PVC base moulds and shape.
- Special adhesive does not dry up and its joints firmly and permanently.
Application
